Lewmar® Anchor - Delta® Manganese Steel
The original Delta® design from Lewmar® is recognised the world over as an outstanding anchor with exceptional holding power.
Manufactured to exacting standards the Delta® is constructed from high grade manganese steel giving it maximum tensile strength. The unique shank profile and ballasted tip plus low centre of gravity and self-righting geometry ensure that the Delta anchor will set immediately.
The design profile and ballasted tip also means that the anchor self launches with ease. The Delta's consistent and reliable performance is backed by a lifetime guarantee against breakage1, has Lloyd's Approval2 as a High Holding Power anchor and is specified as the primary anchor used by numerous national organisations worldwide.
The Delta® anchor is also made available in premium grade Duplex/High Tensile stainless steel.
Lloyd's Test Certificate is available for individual anchors by arrangement.
 |
Damage by deformation or bending is not covered by this guarantee. |

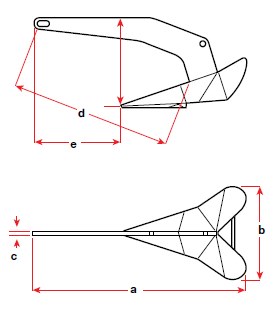

| SKU | Weight | Suits Boat Guide | Suggested Nylon Rope | Suggested Chain Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|---|
| LEW-146242 | 10kg (22lb) | Up to 10.7m (35ft) | 12mm | 8mm | 695 | 308 | 12 | 526 | 283 |
| LEW-146244 | 16kg (35lb) | Up to 12.2m (40ft) | 16mm | 8mm | 812 | 360 | 12 | 614 | 334 |
