Oceansouth T-Top Stern Shade Extension Kit - White
Oceansouth T-Top Extension/Stern Shade Kit is simple to install to extend the shade area on your boat.
Features
- Supplied with Stainless Steel telescopic poles, webbing and buckles.
- Protects from harmful UV rays and harsh weather conditions.
- Excellent tear and abrasion resistance.
- High tech polyester ATLAS 310gsm fabric.
- Shade's height can be adjusted for comfortable seating or standing.
- Folds neatly away when not in use.
- Use at anchor or motoring up to 20 knots.
- 7 year life expectancy
Installation Steps
- Insert assembled poles into rear rod holders
- Attach short webbing straps loosely to the loops at the rear of the fabric
- Attach front webbing straps to the chosen fastening point on the T-Top framework
- Attach long webbing straps to the rear cleats
- Adjust all the webbing straps until T-Top Extension is tensioned and in the desired position

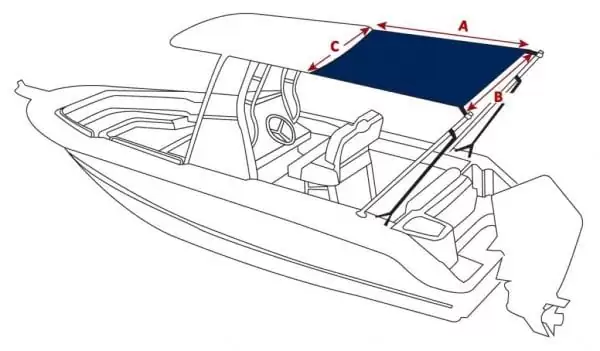

| Part Number | Size | Length (A) | Max. Width (B) | Width (C) |
|---|---|---|---|---|
| OCS-MA045-1W | Size 1 | 1.2m | 1.5m | 1.2m |
| OCS-MA045-2W | Size 2 | 1.5m | 1.5m | 1.2m |
| OCS-MA045-3W | Size 3 | 1.8m | 1.5m | 1.2m |
| OCS-MA045-4W | Size 4 | 1.8m | 2.1m | 1.5m |
| OCS-MA045-5W | Size 5 | 2.1m | 2.1m | 1.5m |
| OCS-MA045-6W | Size 6 | 2.4m | 2.1m | 1.5m |
