Outboard motor bracket produced from 316 stainless steel and a solid timber mounting board. This adjustable bracket is spring-loaded with 4 vertical positions and is suitable for motors up to 25hp.
Easy to lift and lower, the stainless springs help counter-balance the motors weight.
Heavy duty stamped stainless components. Ideal for small to medium sized powerboats and yachts.
The mounting board needs minor assembly with the four 304 stainless steel bolts provided.

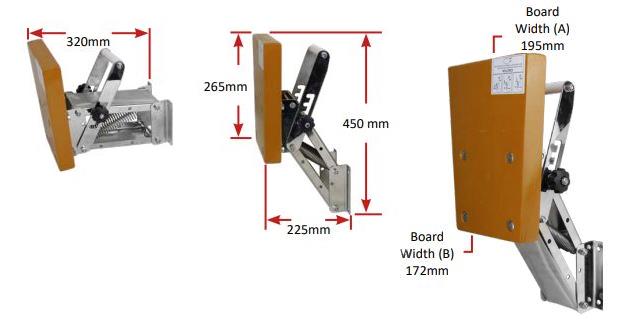

- Upwards Hole Centre to Centre: 110mm
- Across Hole Centre to Centre: 125mm
Part number | Max Outboard Weight | Bracket Mounting Dimensions (W x H) | Mounting Holes |
---|---|---|---|
SAW-70326 | Up to 30kg | 148mm x 140mm | 8mm |
